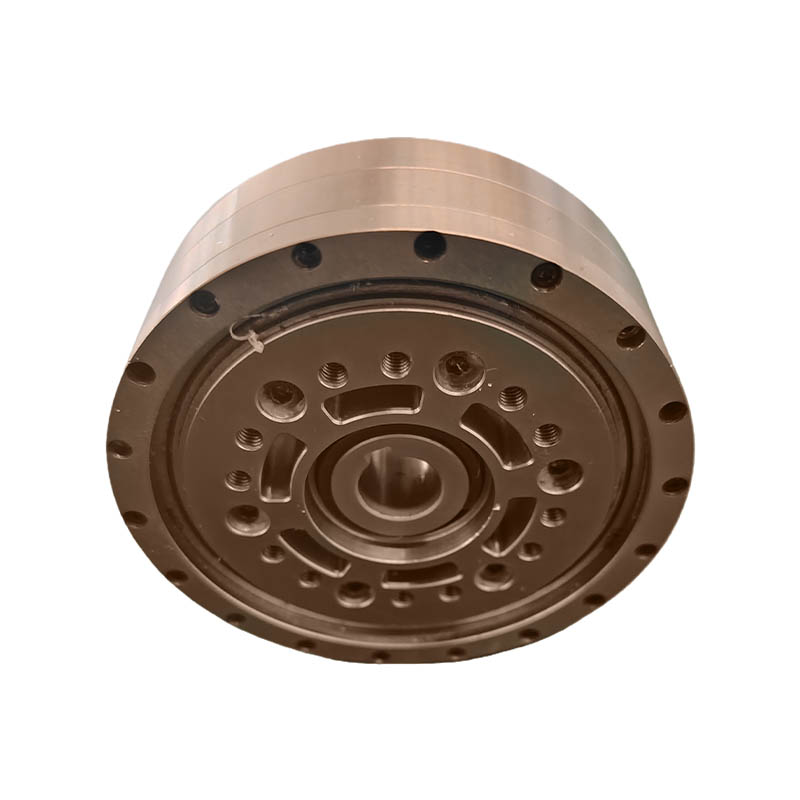

Reducer
QLRP-3C-59
"Supports customization of reducers with low tooth difference from 10-1000Nm". Suitable for humanoid robots, robot dogs, drones, small AGVs, and other fields.
Reduction ratio: 10-300
Rated output torque: 35 Nm
Maximum acceleration torque: 105 Nm
Maximum instantaneous load torque: 210 Nm
Rated input speed: 900 rpm
Maximum input speed: 1800 rpm
Transmission accuracy: 2 arcmin
Backlash: 3 arcmin
Mounting method: Horizontal
Weight: 0.35 ± 0.02 kg
Lubrication method: Oil/grease lubrication
Output method: Needle-type external gear output/planetary carrier output
